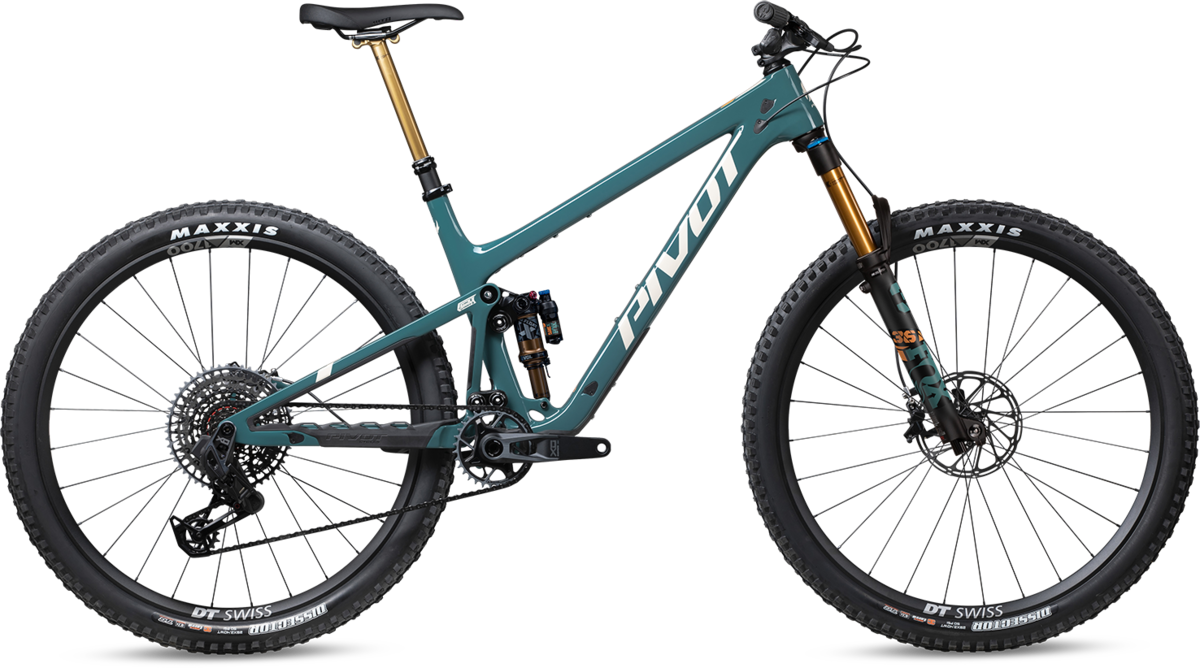

Pivot Cycles Trail 429 Pro X0 AXS Enduro (Alloy Wheels)

No Image Available
This item is currently not available.

Details

All-Mountain Attitude, Race Bike Reflexes.

Evolution of a Classic
This latest iteration of the Trail 429 is evidence of our constant quest for peak performance. We've broadened its capabilities without sacrificing its legendary sharpness: slackening the head angle just enough, increasing the reach, and introducing a flip-chip to allow fine tuning of the geometry toward either the rowdy or racy ends of the spectrum.

All-Star Suspension
Is it possible for a bike to be both razor sharp and butter smooth? Yes. The Trail 429 is proof. In order to wring every drop of potential out of 120mm, we've reworked the already stellar dw-link suspension to provide a more bottomless feel and allow for a greater range of tunability. The Trail 429 combines rocket ship pedaling performance with a plushness that genuinely feels like more travel than the numbers indicate.

Our Strongest, Lightest, Carbon Fiber Chassis
Through continued evolution of our proprietary Hollow Core carbon frame construction, we carved more than 300 grams from the chassis, achieving an XC-race frame weight with incredible all-mountain strength and stiffness, on par with dedicated flyweight race bikes.

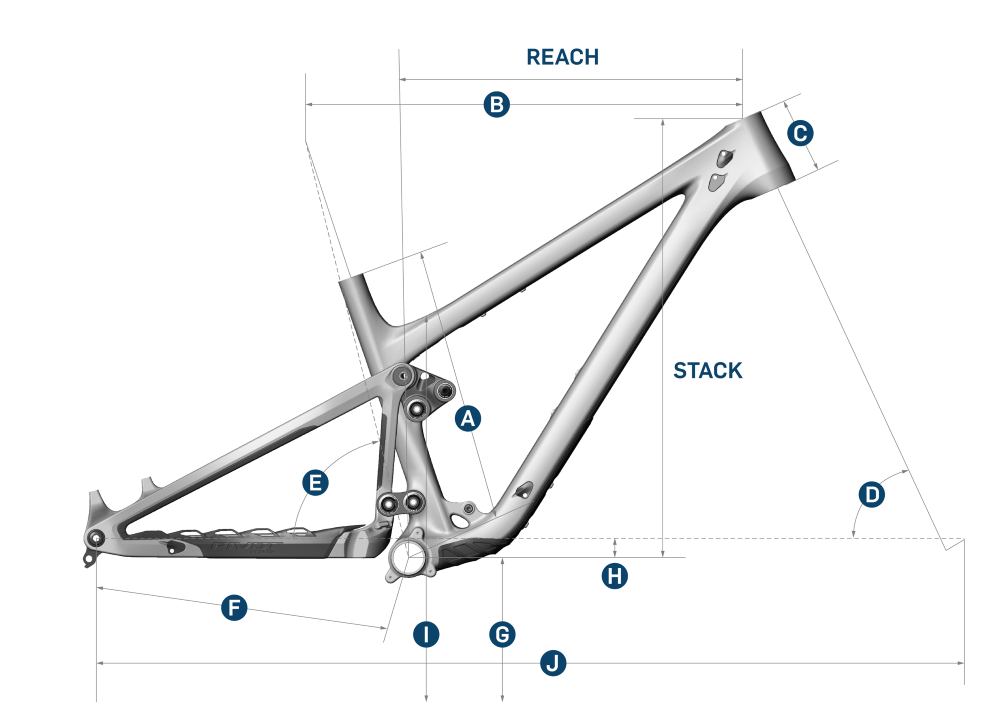

Geometry

Sizes:
Low BBXSSMMDLGXL
A Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm 47 cm
B Top Tube Length 57.2 cm 59.5 cm 62.8 cm 64.4 cm 66.7 cm
C Head Tube Length 8.5 cm 9.5 cm 10.7 cm 11.2 cm 12.5 cm
D Head Tube Angle 66.5° 66.5° 66.5° 66.5° 66.5°
E Seat Tube Angle (Eff.) 75.5° 75.5° 75.5° 75.5° 75.5°
F Chainstay Length 43 cm 43 cm 43 cm 43 cm 43 cm
G Bottom Bracket Height 34.7 cm 34.7 cm 34.7 cm 34.7 cm 34.7 cm
H Bottom Bracket Drop 2.7 cm 2.7 cm 2.7 cm 2.7 cm 2.7 cm
I Standover 63.6 cm 66.8 cm 67 cm 68.2 cm 69.6 cm
Wheelbase 112.8 cm 115.2 cm 118.7 cm 120.4 cm 122.9 cm
Reach 41 cm 43 cm 46 cm 47.5 cm 49.5 cm
Stack 58.4 cm 59.3 cm 60.4 cm 60.9 cm 62.1 cm
Sizes:
Lower BBXSSMMDLGXL
A Seat Tube Length (C-T) 34.3 cm 36.8 cm 39.4 cm 43.2 cm 47 cm
B Top Tube Length 57.3 cm 59.6 cm 62.9 cm 64.5 cm 66.9 cm
C Head Tube Length 8.5 cm 9.5 cm 10.7 cm 11.2 cm 12.5 cm
D Head Tube Angle 66° 66° 66° 66° 66°
E Seat Tube Angle (Eff.) 75° 75° 75° 75° 75°
F Chainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
G Bottom Bracket Height 34 cm 34 cm 34 cm 34 cm 34 cm
H Bottom Bracket Drop 3.3 cm 3.3 cm 3.3 cm 3.3 cm 3.3 cm
I Standover 63.1 cm 66.2 cm 66.4 cm 67.7 cm 69 cm
Wheelbase 112.9 cm 115.3 cm 118.8 cm 120.5 cm 123 cm
Reach 40.5 cm 42.5 cm 45.5 cm 47 cm 49 cm
Stack 58.8 cm 59.7 cm 60.8 cm 61.3 cm 62.5 cm

Specs not provided by mfg. Call us for details.
