Scott Foil RC Pro

Scott Foil RC Pro
  • Color: Blue
Please select options
Please give us a call to check current availability.


Stage wins at all the grand tours, classic victories at Milan San Remo, Liege Bastogne Liege and Paris-Roubaix—we can safely say that the FOIL RC Pro is the most versatile aero bike on the market. Its HMX Carbon fiber frame was designed to help you gain those extra precious seconds, and comes in as one of the lightest in the aero market. Fully integrated cable routing, Dura-Ace Di2 and Syncros Carbon components, this road bike will help you win every ride.

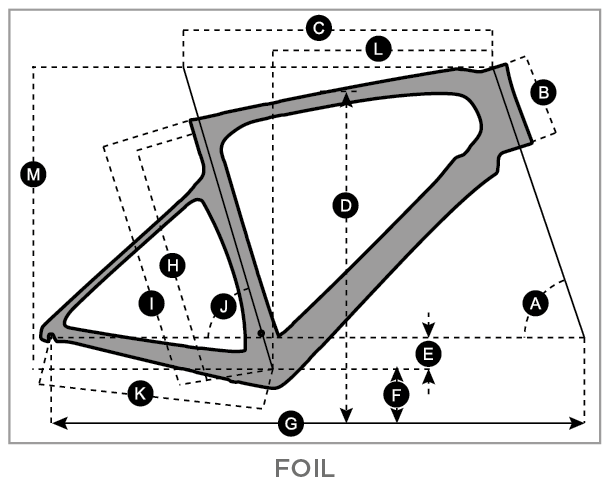

A HEAD TUBE ANGLE 70.5 ° 71 ° 72 ° 72.5 ° 73 ° 73.3 ° 73.3 °
B HEAD TUBE LENGTH 110mm 115mm 130mm 150mm 170mm 190mm 210mm
C TOP TUBE HORIZONTAL 510mm 520mm 535mm 550mm 565mm 580mm 595mm
D STANDOVER HEIGHT 715.9mm 729.4mm 753.6mm 773.5mm 798.8mm 812.9mm 837.3mm
E BB OFFSET -66mm -66mm -66mm -66mm -66mm -66mm -66mm
F BB HEIGHT 273mm 273mm 273mm 273mm 273mm 273mm 273mm
G WHEEL BASE 972mm 978mm 980mm 987mm 994.2mm 1,002.9mm 1,012mm
H BB CENTER TO TOPTUBE CENTER 400mm 420mm 450mm 470mm 490mm 510mm 540mm
I BB CENTER TO TOP OF SEATTUBE 410mm 430mm 460mm 480mm 500mm 520mm 550mm
J SEAT ANGLE 74.5 ° 74.5 ° 74 ° 73.6 ° 73.3 ° 73 ° 72.5 °
K CHAINSTAY 410mm 410mm 410mm 410mm 410mm 410mm 410mm
L REACH 370.6mm 378.8mm 384mm 388.9mm 394.5mm 400mm 403.4mm
M STACK 502.6mm 509mm 526.7mm 547.5mm 568.3mm 588.5mm 607.7mm
N STEM LENGTH 90mm 90mm 100mm 110mm 110mm 120mm 120mm


Frame FOIL Disc HMX / F01 AERO Carbon tech. / Road Race geometry / Replaceable Derailleur Hanger
Fork FOIL Disc HMX / 1" Carbon steerer / Integrated Carbon Dropout
Wheels Zipp 303SE Carbon tubless disc-brake / 24 Front / 24 Rear / Syncros Axle w/Removable Lever with Tool
Tires Schwalbe PRO ONE Microskin, TL-Easy, Fold / 700x28C
Bottom Bracket Shimano SM-BB92-41B
Crankset Shimano Dura-Ace FC-R9200 / Hollowtech II 52x36T
Shifters Shimano Dura-Ace Di2 ST-R9270 / Dual control 24 Speed Electronic Shift System
Front Derailleur Shimano Dura-Ace Di2 FD-R9250
Rear Derailleur Shimano Dura-Ace Di2 RD-R9250
Cassette/Freewheel Shimano Dura-Ace CS-R9200-12 / 11-30T
Chain Shimano Dura-Ace CN-M9100-12
Brakes Shimano BR-R9270 Hyd.Disc
Rotors Shimano SM-MT900 CL rotor 160/F and 160/R
Handlebars Syncros Creston iC SL / Carbon combo
Headset Syncros Integrated
Seatpost Syncros Duncan 1.0 Aero
Saddle Syncros Belcarra V-Concept 1.0
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue / 47cm 192820601106 286398047
Blue / 49cm 192820601113 286398049
Blue / 52cm 192820601120 286398052
Blue / 54cm 192820601137 286398054
Blue / 56cm 192820601144 286398056
Blue / 58cm 192820601151 286398058
Blue / 61cm 192820601168 286398061
