Trek Émonda SLR 7 AXS
$9,699.99
Details
Émonda SLR 7 AXS is an ultralight, aerodynamic carbon road bike that's designed and built to be the fastest climbing bike we've ever made. You get the legendary ride quality of our lightest platform, plus more speed, thanks to aero tubes wrought from our lightest OCLV layup ever. You also get the performance advantage of a precise wireless electronic drivetrain and power meter.
- Trek’s fastest climbing frame is aero, weighs in at less than 700g, and rides like a dream
- The SRAM Force eTap AXS drivetrain is smart, smooth, and completely wireless
- 800 Series OCLV Carbon is the lightest laminate we’ve ever made
- The Aeolus Pro 37 wheels are designed for climbing, and were developed alongside Émonda
- Comes with a SRAM Force AXS power meter for more effective training rides from the start

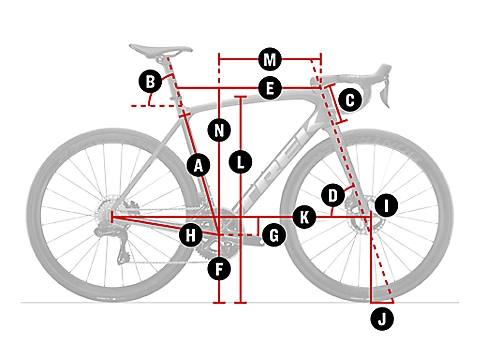

| Frame size number | 47 cm | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 42.4 | 45.3 | 48.3 | 49.6 | 52.5 | 55.3 | 57.3 | 59.3 |
| B — Seat tube angle | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length | 10 | 11.1 | 12.1 | 13.1 | 15.1 | 17.1 | 19.1 | 21.1 |
| D — Head angle | 72.1° | 72.1° | 72.8° | 73.0° | 73.5° | 73.8° | 73.9° | 73.9° |
| E — Effective top tube | 51.2 | 52.1 | 53.4 | 54.3 | 55.9 | 57.4 | 58.6 | 59.8 |
| G — Bottom bracket drop | 7.2 | 7.2 | 7.2 | 7 | 7 | 6.8 | 6.8 | 6.8 |
| H — Chainstay length | 41 | 41 | 41 | 41 | 41 | 41.1 | 41.1 | 41.2 |
| I — Offset | 4.5 | 4.5 | 4.5 | 4.5 | 4 | 4 | 4 | 4 |
| J — Trail | 6.8 | 6.2 | 5.8 | 5.6 | 5.8 | 5.7 | 5.6 | 5.6 |
| K — Wheelbase | 97.2 | 97.4 | 97.7 | 98.1 | 98.3 | 99.2 | 100.1 | 101 |
| L — Standover | 69.2 | 71.1 | 73.2 | 74.4 | 76.8 | 79.3 | 81.1 | 82.9 |
| M — Frame reach | 37.3 | 37.8 | 38.3 | 38.6 | 39.1 | 39.6 | 39.9 | 40.3 |
| N — Frame stack | 50.7 | 52.1 | 53.3 | 54.1 | 56.3 | 58.1 | 60.1 | 62 |
| Stem length | 80 | 80 | 90 | 90 | 100 | 110 | 110 | 110 |
| Saddle rail height min (w/short mast) | 55.5 | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) | 61.5 | 64.5 | 67.5 | 70 | 73 | 75 | 77 | 79 |
| Saddle rail height min (w/tall mast) | 59 | 62 | 65 | 67.5 | 70.5 | 72.5 | 74.5 | 76.5 |
| Saddle rail height max (w/tall mast) | 65 | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| Size | Rider Height | Inseam |
|---|---|---|
| 47 | 152 - 158 cm 5'0" - 5'2" |
71 - 75 cm 28" - 30" |
| 50 | 158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 | 163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 | 168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 | 174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 | 180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 60 | 185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
| 62 | 190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
Specs
| Fork | Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
|---|---|
| Rims | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready |
| Chain | SRAM Force, 12 speed |
| Frame | Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
| Tires | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c |
| Brakes | SRAM Force eTap AXS hydraulic disc, flat mount |
| Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145mm width |
| Wheels | Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12 front, 142x12 rear |
| Crankset | SRAM Force AXS Power Meter, 48/35, DUB, 172.5mm length |
| Seatpost | Bontrager carbon seatmast cap, 20mm offset, tall length |
| Shifters | SRAM Force eTap AXS, 12 speed // SRAM Force eTap AXS, 12 speed |
| Handlebars | Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100mm reach, 124mm drop, 42cm width, 110mm stem length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Rear Derailleur | SRAM Force eTap AXS, 36T max cog |
| Front Derailleur | SRAM Force eTap AXS, braze-on |
| Cassette/Freewheel | SRAM Force XG-1270, 10-33, 12 speed |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Azure / 47cm / 700c | 745889468458 | 5282159 |
| Deep Smoke / 47cm / 700c | 745889468410 | 5282143 |
| Metallic Red Smoke to Red Carbon Smoke / 47cm / 700c | 768682009857 | 5282175 |
| Viper Red / 47cm / 700c | 745889468236 | 5282151 |
| Viper Red / 50cm / 700c | 745889468472 | 5282152 |
| Metallic Red Smoke to Red Carbon Smoke / 50cm / 700c | 768682010914 | 5282176 |
| Deep Smoke / 50cm / 700c | 745889468076 | 5282144 |
| Azure / 50cm / 700c | 745889468298 | 5282160 |
| Azure / 52cm / 700c | 768682011164 | 5282161 |
| Deep Smoke / 52cm / 700c | 745889468052 | 5282145 |
| Metallic Red Smoke to Red Carbon Smoke / 52cm / 700c | 768682010532 | 5282177 |
| Viper Red / 52cm / 700c | 745889468151 | 5282153 |
| Viper Red / 54cm / 700c | 745889468250 | 5282154 |
| Metallic Red Smoke to Red Carbon Smoke / 54cm / 700c | 768682009697 | 5282178 |
| Deep Smoke / 54cm / 700c | 745889468434 | 5282146 |
| Azure / 54cm / 700c | 768682010600 | 5282162 |
| Azure / 56cm / 700c | 768682010518 | 5282163 |
| Deep Smoke / 56cm / 700c | 745889468311 | 5282147 |
| Metallic Red Smoke to Red Carbon Smoke / 56cm / 700c | 768682010860 | 5282179 |
| Viper Red / 56cm / 700c | 745889468359 | 5282155 |
| Viper Red / 58cm / 700c | 745889468496 | 5282156 |
| Metallic Red Smoke to Red Carbon Smoke / 58cm / 700c | 768682009734 | 5282180 |
| Deep Smoke / 58cm / 700c | 745889468199 | 5282148 |
| Azure / 58cm / 700c | 768682010884 | 5282164 |
| Azure / 60cm / 700c | 768682010556 | 5282165 |
| Deep Smoke / 60cm / 700c | 745889468175 | 5282149 |
| Metallic Red Smoke to Red Carbon Smoke / 60cm / 700c | 768682010891 | 5282181 |
| Viper Red / 60cm / 700c | 745889468274 | 5282157 |
| Viper Red / 62cm / 700c | 745889468335 | 5282158 |
| Metallic Red Smoke to Red Carbon Smoke / 62cm / 700c | 768682009666 | 5282182 |
| Deep Smoke / 62cm / 700c | 745889468397 | 5282150 |
| Azure / 62cm / 700c | 768682009369 | 5282166 |
